ELECTRICAL SAFETY DESIGN |
. | |||
Third Wire Example |
||||||
| If there is a properly connected grounded conductor the current in a fault is
not sent through the worker. It should be noted that properly bonded conduit
and associated metal enclosures can also serve as a grounding conductor.

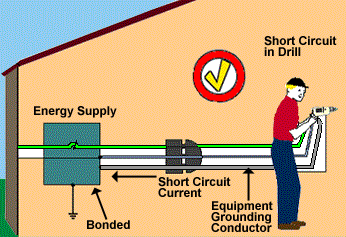

Cord- and Plug-Connected Equipment With Equipment Grounding Conductor (Short circuit flows through equipment ground) |
||||||
|
||||||
| . | ||||||
