WELDING, CUTTING, AND BRAZING

Piping Protective Equipment

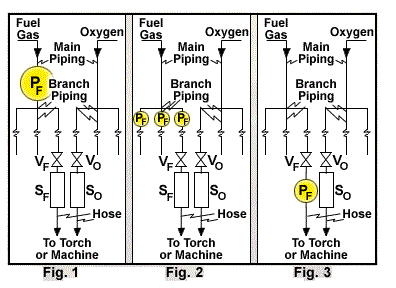

Protective equipment can be located in the main supply line with one check valve installed before each outlet for the greatest protection, as in Figure 1, or at the head of each branch line plus check valves at each outlet, as in Figure 2, or at each location where fuel-gas is withdrawn with check valves at each outlet, as in Figure 3.
